Define authorization rules for MCP method invocations using CEL expressions.

Attaches to:

The MCP authorizationAuthorization (AuthZ)The process of determining what actions an authenticated user or service is allowed to perform. Agentgateway supports HTTP authorization, MCP authorization, and external authorization services. policy works similarly to HTTP authorization, but runs in the context of an MCP request.

Instead of running against an HTTP request, MCP authorization policies run against specific MCP method invocations such as list_tools and call_tools.

If a tool or other resource is not allowed, the gateway automatically filters it from the list response, so unauthorized clients never see it.

You can attach mcpAuthorization at the route level or directly to an MCP backend. A backend-level policy applies to every MCP target in that backend. To vary the rules per target instead, keep one route-level policy and match on the mcp.tool.target variable, as shown in Different rules per target. For the other policies that you can scope to an individual target, see MCP target policies.

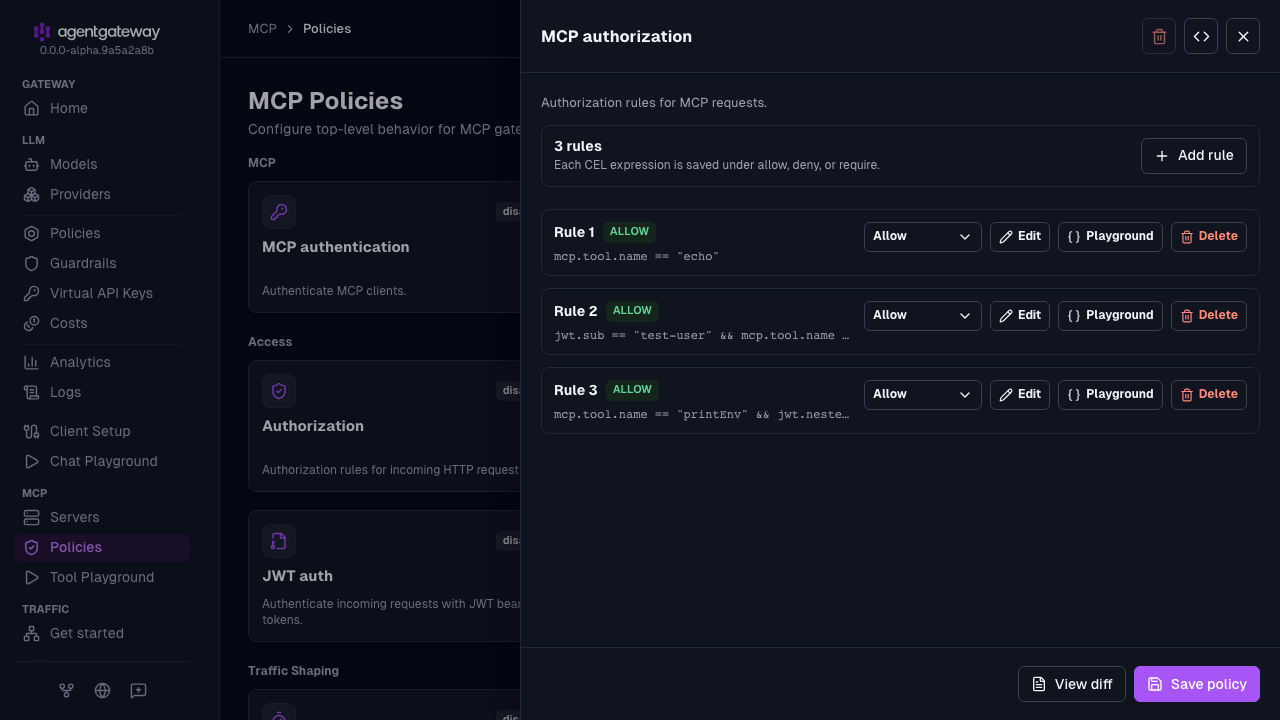

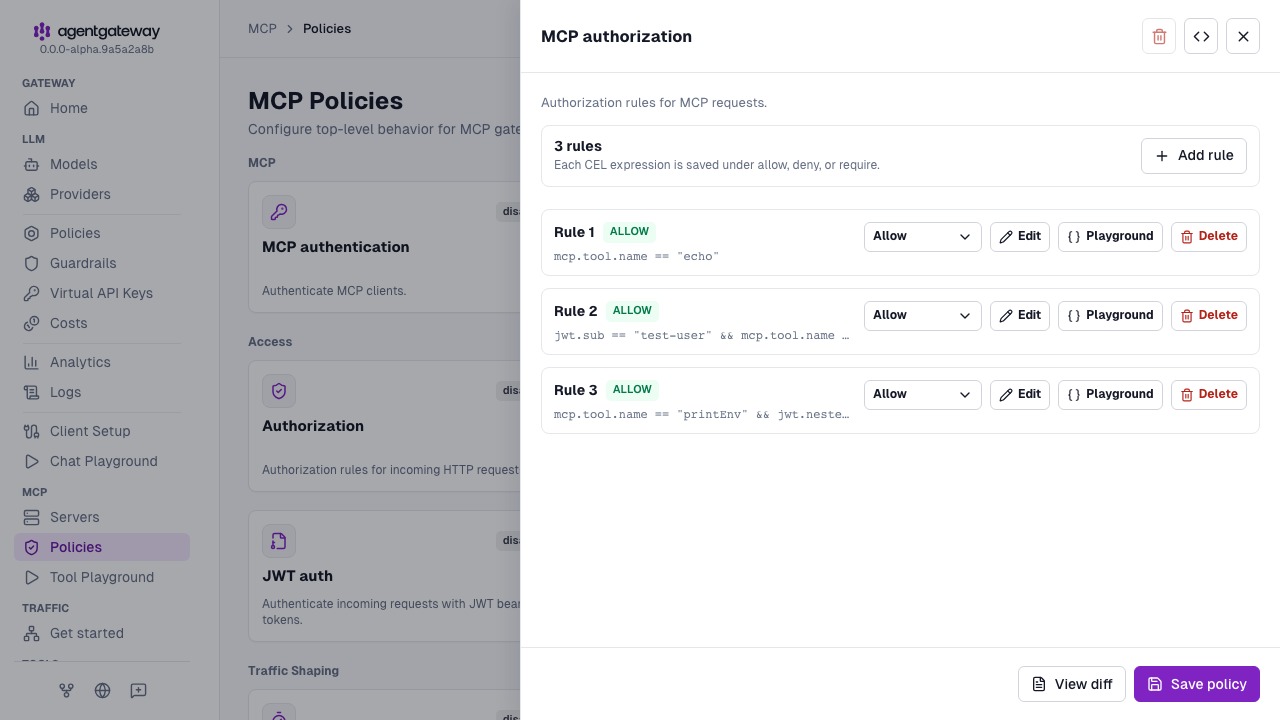

You can configure MCP authorization rules in the UI or in your configuration file.

# yaml-language-server: $schema=https://agentgateway.dev/schema/config
mcp:
  port: 3000
  policies:
    mcpAuthorization:
      rules:
      # Allow anyone to call 'echo'
      - 'mcp.tool.name == "echo"'
      # Only the test-user can call 'add'
      - 'jwt.sub == "test-user" && mcp.tool.name == "add"'
      # Any authenticated user with the claim `nested.key == value` can access 'printEnv'
      - 'mcp.tool.name == "printEnv" && jwt.nested.key == "value"'
  targets:
  - name: everything
    stdio:
      cmd: npx
      args: ["@modelcontextprotocol/server-everything"]

# yaml-language-server: $schema=https://agentgateway.dev/schema/config
gateways:
  default:
    port: 3000
routes:
- policies:
    mcpAuthorization:
      rules:
      # Allow anyone to call 'echo'
      - 'mcp.tool.name == "echo"'
      # Only the test-user can call 'add'
      - 'jwt.sub == "test-user" && mcp.tool.name == "add"'
      # Any authenticated user with the claim `nested.key == value` can access 'printEnv'
      - 'mcp.tool.name == "printEnv" && jwt.nested.key == "value"'
  backends:
  - mcp:
      targets:
      - name: everything
        stdio:
          cmd: npx
          args: ["@modelcontextprotocol/server-everything"]

Role-based access with JWT claims

When you combine MCP authorization with MCP authentication, you can write rules that reference JWT claims. The following configuration restricts tools based on the authenticated user’s identity and role:

• The MCP authentication policy validates JWTs against a local authorization server, such as Keycloak, running on port 9000.
• Any authenticated user can call the echo tool.
• Only the user test-user can call the add tool.
• Only users with the nested claim nested.key == "value" can call the printEnv tool.

# yaml-language-server: $schema=https://agentgateway.dev/schema/config
mcp:
  port: 3000
  policies:
    mcpAuthentication:
      issuer: http://localhost:9000
      audiences:
      - http://localhost:3000/mcp
      jwks:
        url: http://localhost:9000/.well-known/jwks.json
      resourceMetadata:
        resource: http://localhost:3000/mcp
        scopesSupported:
        - read:all
        bearerMethodsSupported:
        - header
    mcpAuthorization:
      rules:
      # Any authenticated user can call 'echo'
      - 'mcp.tool.name == "echo"'
      # Only the test-user can call 'add'
      - 'jwt.sub == "test-user" && mcp.tool.name == "add"'
      # Claim-based access for 'printEnv'
      - 'mcp.tool.name == "printEnv" && jwt.nested.key == "value"'
  targets:
  - name: everything
    stdio:
      cmd: npx
      args: ["@modelcontextprotocol/server-everything"]

Different rules per target

When you multiplex several MCP servers behind a single agentgateway listener, you can apply different authorization rules to each target by matching on the mcp.tool.target variable in a single policy. In the following configuration:

• Any user can access tools on the public-tools target.
• Only users with admin in the JWT roles claim can access tools on the admin-tools target.
• The JWT is validated against a local authorization server running on port 9000.

# yaml-language-server: $schema=https://agentgateway.dev/schema/config
mcp:
  port: 3000
  policies:
    cors:
      allowOrigins: ["*"]
      allowHeaders:
      - mcp-protocol-version
      - content-type
      - cache-control
    mcpAuthentication:
      mode: optional
      issuer: http://localhost:9000
      audiences:
      - http://localhost:3000/mcp
      jwks:
        url: http://localhost:9000/.well-known/jwks.json
      resourceMetadata:
        resource: http://localhost:3000/mcp
        scopesSupported:
        - read:all
        bearerMethodsSupported:
        - header
    mcpAuthorization:
      rules:
      # Allow anyone to access tools on the public-tools target
      - 'mcp.tool.target == "public-tools"'
      # Only authenticated admins can access tools on the admin-tools target
      - 'mcp.tool.target == "admin-tools" && has(jwt.sub) && "admin" in jwt.roles'
  targets:
  - name: public-tools
    stdio:
      cmd: npx
      args: ["@modelcontextprotocol/server-everything"]
  - name: admin-tools
    stdio:
      cmd: npx
      args: ["@mycompany/admin-server"]

CEL variables

The following MCP-specific CEL variables are available in authorization rules:

Request-time variables are available during authorization and can be used in mcpAuthorization rules. Post-request variables are available in access log CEL expressions. Route-level HTTP policies, such as authorization and localRateLimit, can also read mcp.sessionId and mcp.tool.arguments when the request arrives. For more information, see the CEL variables reference.

When you also configure MCP authentication, claims from the validated JWT are available to your rules as well:

Tool arguments are not available during authorization

mcp.tool.arguments isn’t set when mcpAuthorization rules run, so the rules can’t reference it. Base authorization decisions on mcp.tool.name and mcp.tool.target instead. To allow or deny a call based on its arguments, use a route-level authorization policy, which can read mcp.tool.arguments.

To inspect tool arguments, use an access log policy, which evaluates post-request:

frontendPolicies:
  accessLog:
    add:
      tool_args: 'mcp.tool.arguments'

See MCP observability for the full example, and the CEL reference for additional variables.
